Laser logo & capacity markings
Logo artwork, placement and capacity graduation lines are reviewed for the selected SKU. Artwork, process, MOQ and sample approval are confirmed before production.
Product family

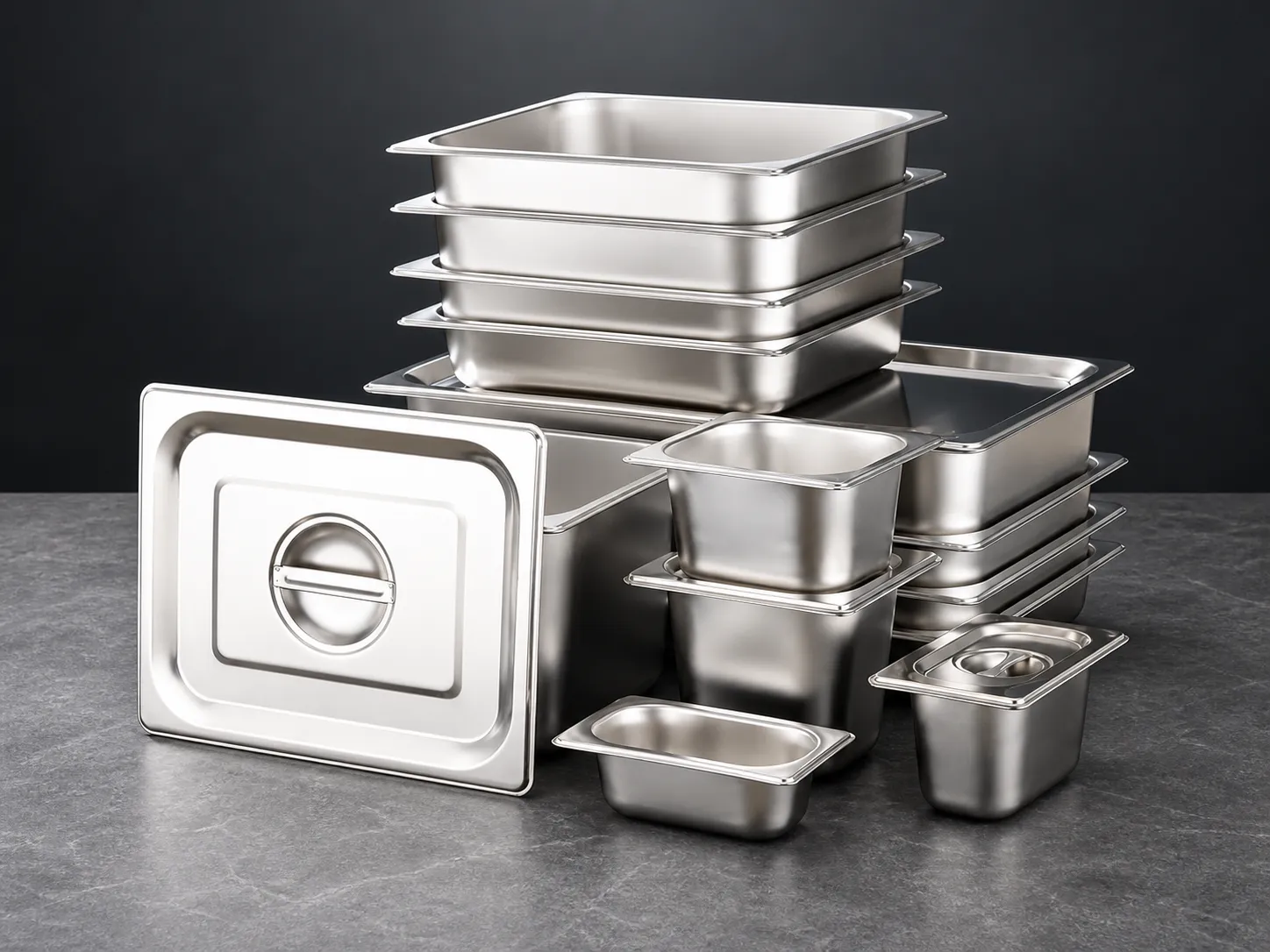

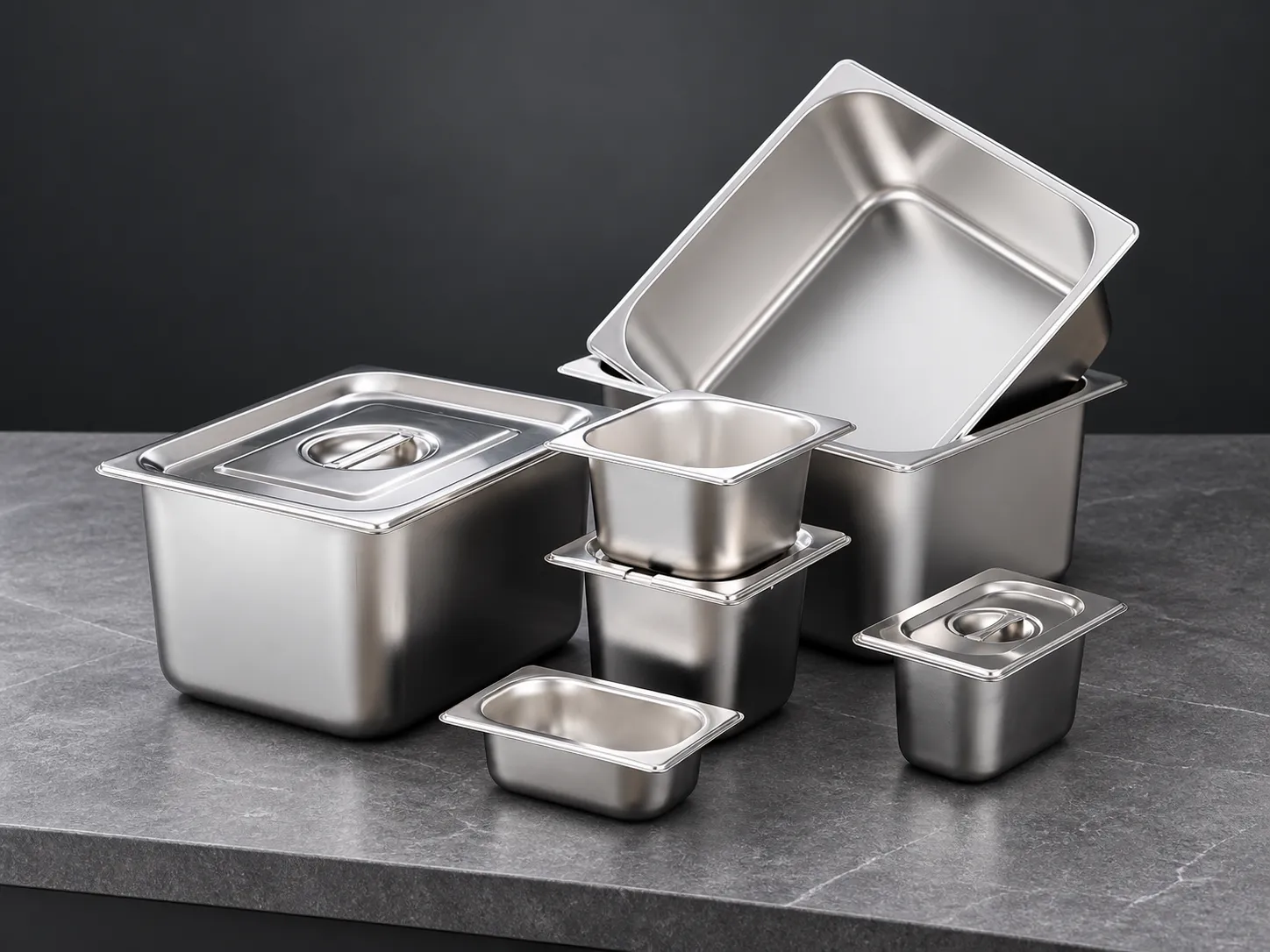

American-Style Hotel & Steam Table Pans
Smooth-Sidewall Series
Also called steam table pans
A stainless-steel hotel-pan range for North American distribution, steam-table equipment and private-label foodservice programs.
A more continuous, smooth sidewall without the same horizontal shoulder in SEEKTAY’s current range.
Depth and thickness options depend on size and material. View stock specifications →
SEEKTAY uses “European-style” and “American-style” to distinguish the construction of its current stainless-steel food pan ranges. Final fit should be confirmed by outside dimensions, rim and sidewall profile, depth, lid compatibility, and equipment opening.
Model numbers & sizes
How the current seven sizes combine within one Full 1/1 footprint.
Each drawing uses the same portrait 1/1 reference footprint (325 × 530 mm) to show common fraction groupings. Confirm the requested SKU and equipment opening during quotation.
Swipe or scroll horizontally to view all size combinations.
Specifications
Size name, dimensions and common usage.
Swipe or scroll horizontally to view all columns.
| Size | Dimension (mm) | Dimension (in) | Common Usage |
|---|---|---|---|
| Full 1/1 | 530 × 325 mm | 20.9″ × 12.8″ | Steam tables, ovens and main entrees |
| Half 1/2 | 325 × 265 mm | 12.8″ × 10.4″ | Salad bars, side dishes and proteins |
| Two-Thirds 2/3 | 354 × 325 mm | 13.9″ × 12.8″ | Buffet lines and mid-volume hot holding |
| Third 1/3 | 325 × 176 mm | 12.8″ × 6.9″ | Prep lines, toppings and sauces |
| Quarter 1/4 | 265 × 162 mm | 10.4″ × 6.4″ | Small condiments and salad dressings |
| Sixth 1/6 | 176 × 162 mm | 6.9″ × 6.4″ | Garnishes and sandwich prep stations |
| Ninth 1/9 | 176 × 108 mm | 6.9″ × 4.3″ | Specialty ingredients, spices and herbs |
Stock specifications
Stock sizes, depths and thickness options
The tables below list our stock specifications. Other sizes, thicknesses and materials can be made to order. Please contact us to discuss your requirements. Ask about a custom specification →
SS201 Stock Specifications
Swipe or scroll horizontally to view all columns.
| Size | Dimension (mm) | Depth (mm) | Thickness (mm) |
|---|---|---|---|
| Full 1/1 | 530 × 325 | 20/40 | 0.7 |
| 65/100/150 | 0.7/1.0 | ||
| 200 | 1.0 | ||
| Half 1/2 | 325 × 265 | 20/40 | 0.7 |
| 65/100/150 | 0.7/1.0 | ||
| 200 | 1.0 | ||
| Two-Thirds 2/3 | 354 × 325 | 65/100/150/200 | 1.0 |
| Third 1/3 | 325 × 176 | 40 | 0.7 |
| 65/100/150 | 0.7/1.0 | ||
| 200 | 1.0 | ||
| Quarter 1/4 | 265 × 162 | 40 | 0.7 |
| 65/100/150 | 0.7/1.0 | ||
| 200 | 1.0 | ||
| Sixth 1/6 | 176 × 162 | 65/100/150 | 0.7/1.0 |
| Ninth 1/9 | 176 × 108 | 65/100 | 0.7/1.0 |
| 150 | 1.0 |
SS304 Stock Specifications
Swipe or scroll horizontally to view all columns.
| Size | Dimension (mm) | Depth (mm) | Thickness (mm) |
|---|---|---|---|
| Full 1/1 | 530 × 325 | 65/100/150/200 | 1.1 |
| Half 1/2 | 325 × 265 | 65/100/150/200 | 1.1 |
| Two-Thirds 2/3 | 354 × 325 | 65/100/150/200 | 1.1 |
| Third 1/3 | 325 × 176 | 65/100/150/200 | 1.1 |
| Quarter 1/4 | 265 × 162 | 65/100/150/200 | 1.1 |
| Sixth 1/6 | 176 × 162 | 65/100/150 | 1.1 |
| Ninth 1/9 | 176 × 108 | 65/100/150 | 1.1 |
Key selling points
Details that matter in daily service.
Four practical strengths of the American-Style Hotel & Steam Table Pans range, stated at family level and confirmed per SKU at quotation.
01

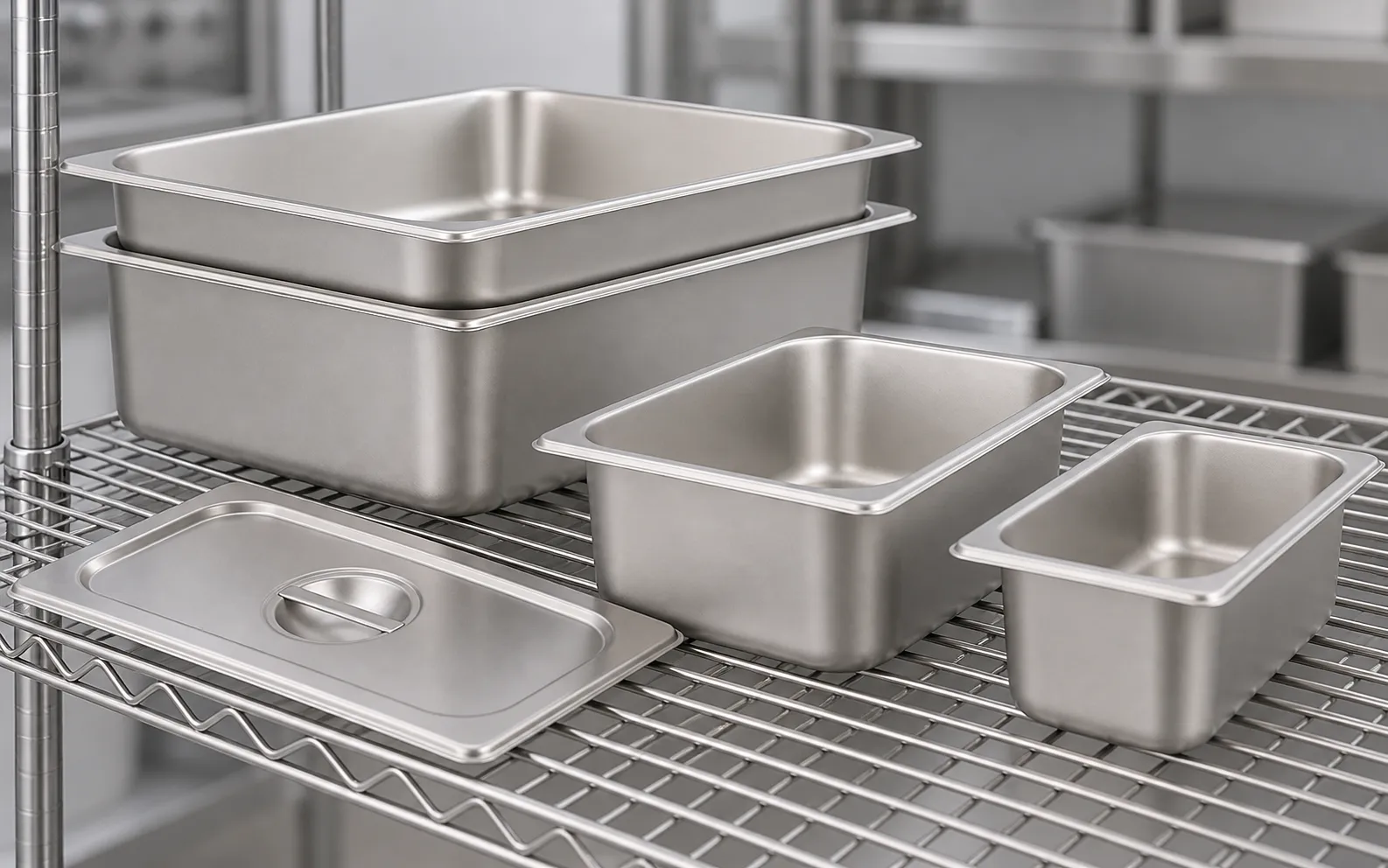

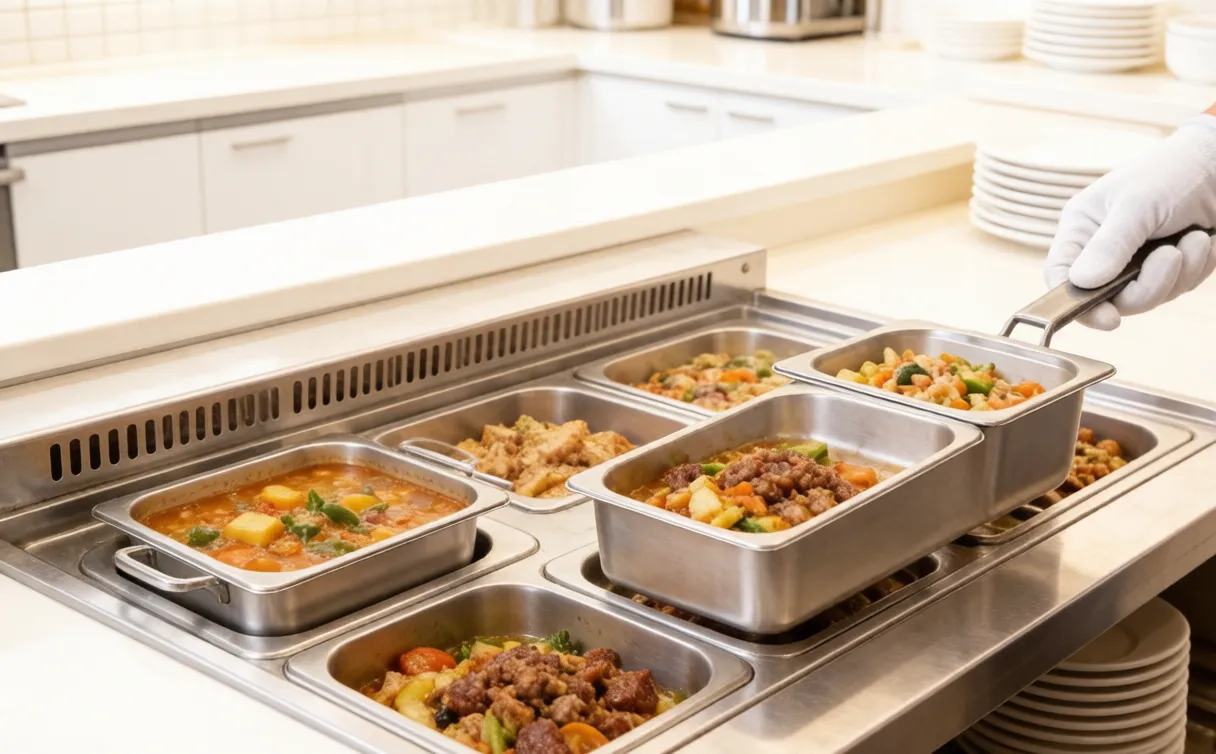

Applications in Professional Kitchens
This range supports preparation, steam-table holding, refrigerated storage and buffet service for restaurant chains, catering operations and hospitality suppliers.
Match the pan to the service setup and equipment opening.
02
Multiple Sizes and Configurations

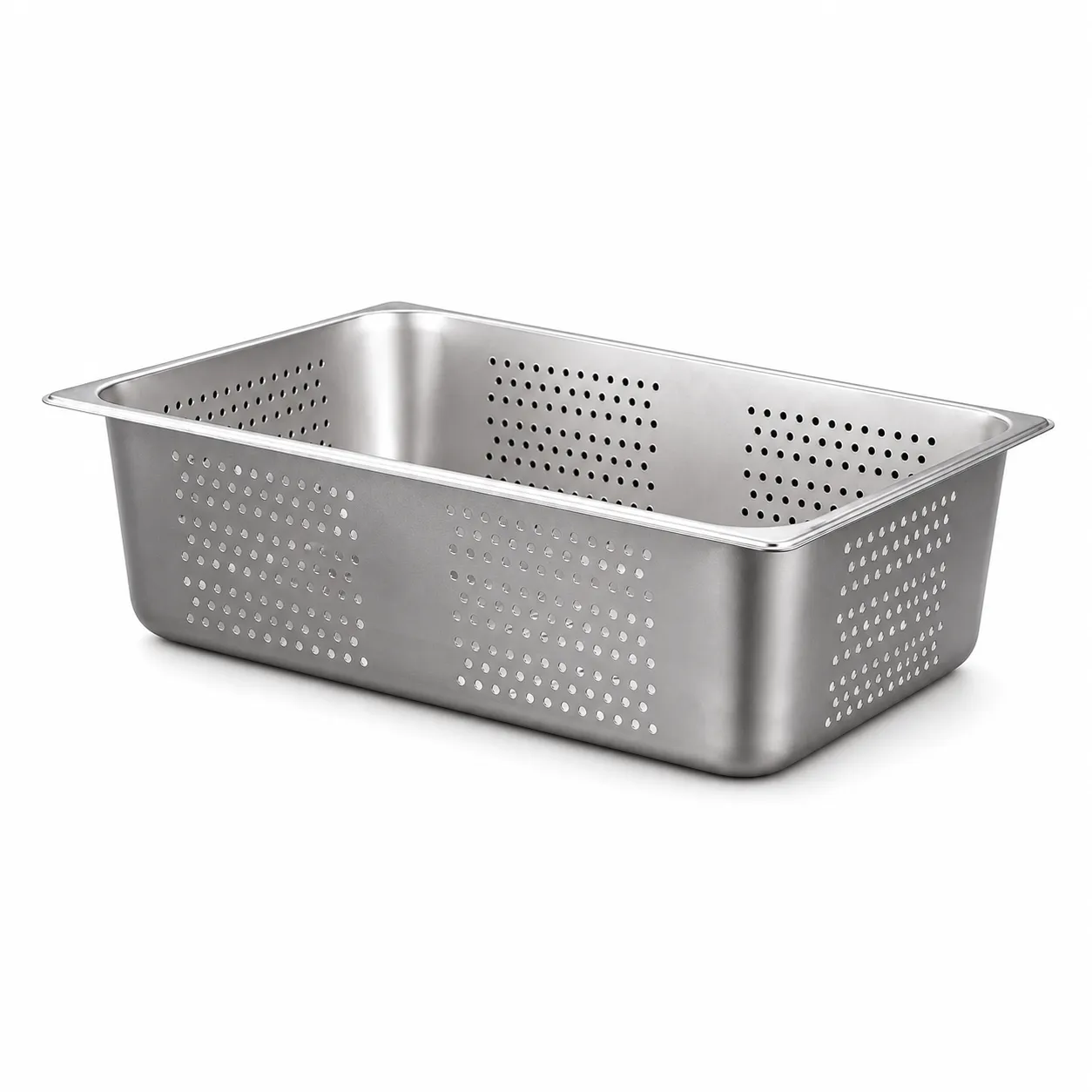

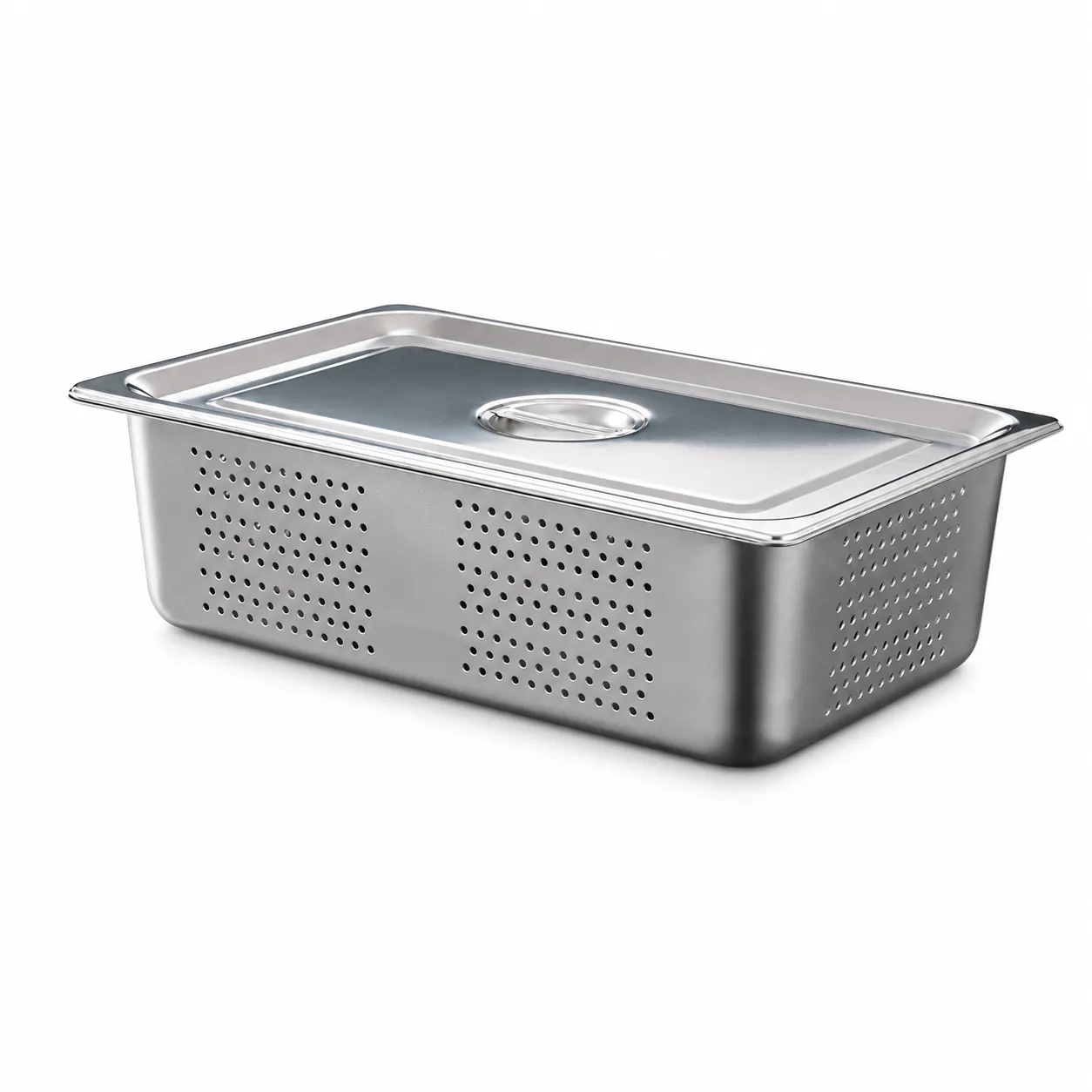

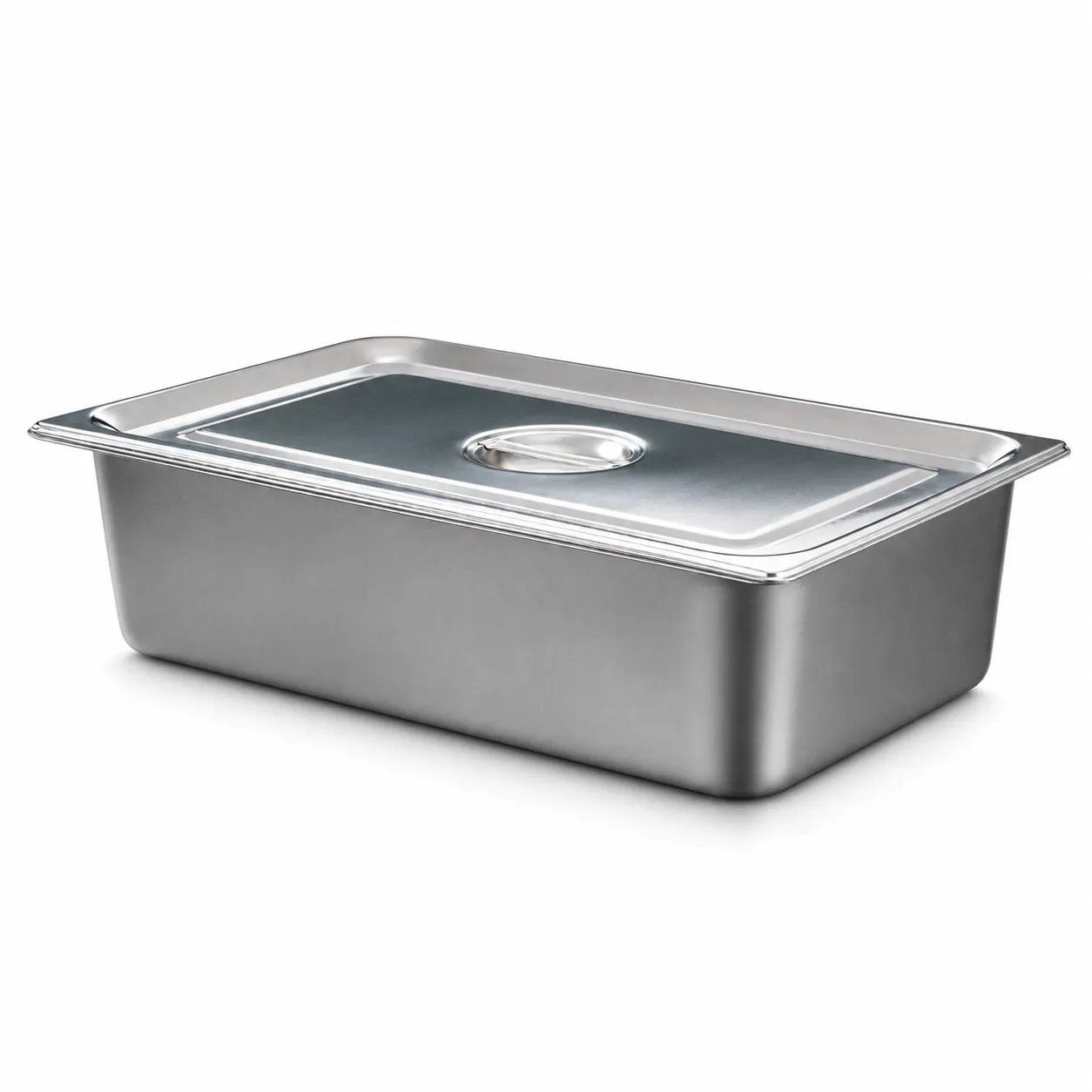

The current smooth-sidewall family covers seven listed hotel-pan sizes, including Two-Thirds, with depth, thickness and SS201 or SS304 options selected by SKU. Solid and perforated pans, lids and handles are available where confirmed.
Distributors and private-label buyers can combine configurations around their market and order requirements.
03

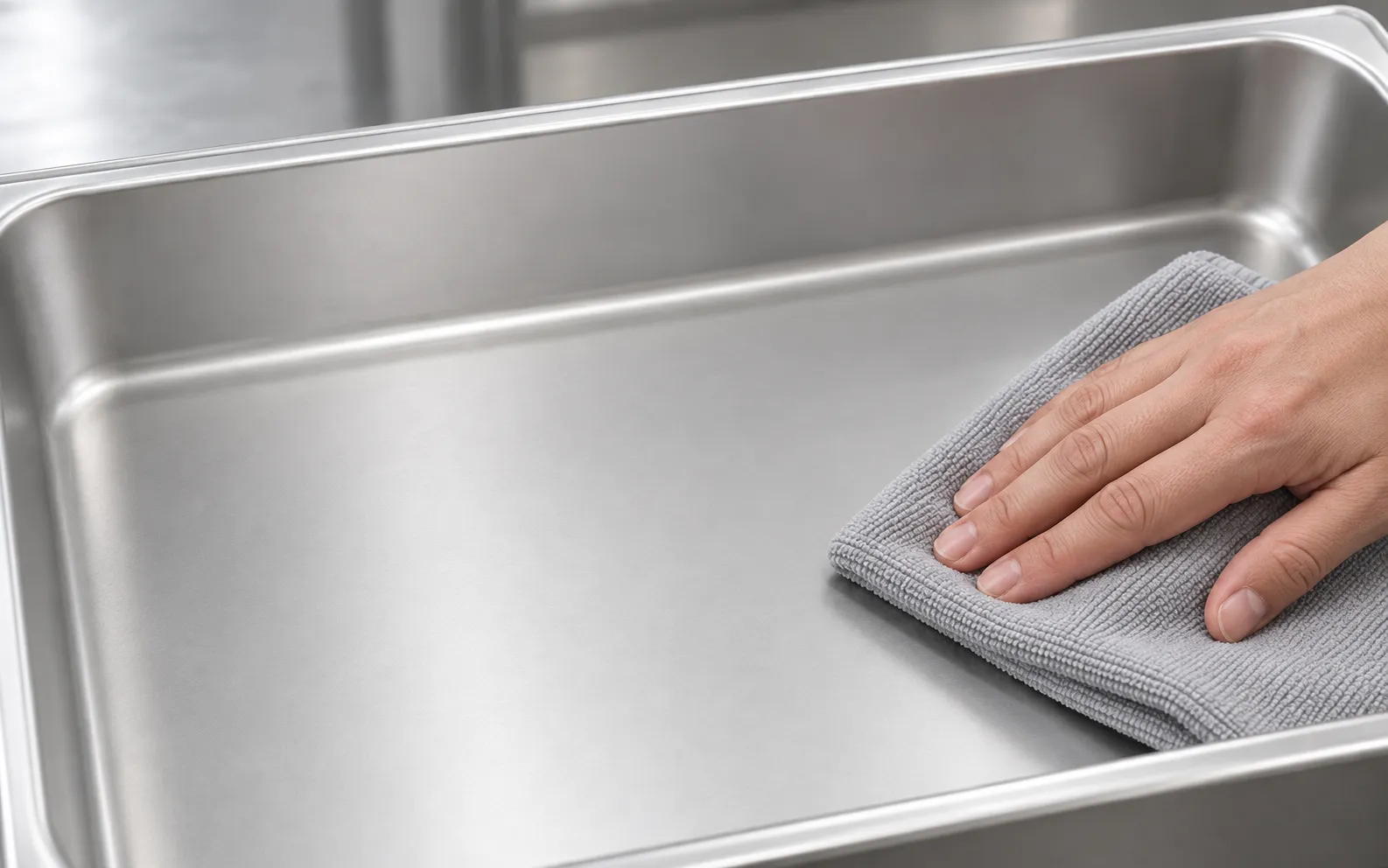

Electropolished, Easy-Clean Surface
Electropolishing creates a smoother, more uniform stainless-steel finish that is easier to wipe down and maintain through regular commercial-kitchen use.
Follow the agreed cleaning and care instructions for the selected material.
04

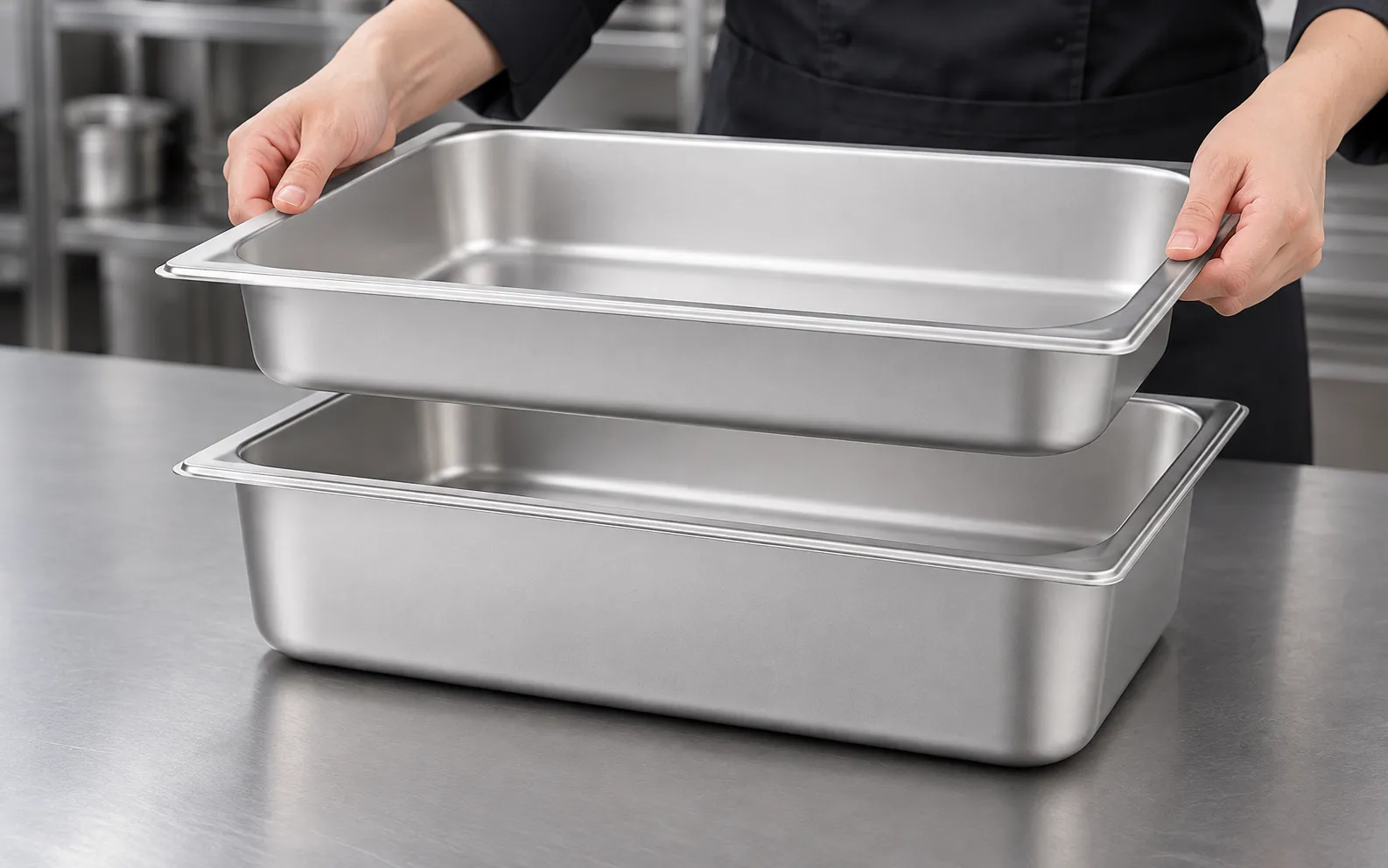

Rolled Rim and Stacking
A smooth rolled rim provides a more comfortable gripping edge for lifting, sliding and restacking pans during daily handling.
Nested stacking keeps pans together for storage and transport. Confirm the stacking arrangement for the selected configuration.
OEM & ODM
Custom work, reviewed per SKU.
Start from a confirmed base pan, then add the custom work that belongs to that exact specification. Feasibility, MOQ, artwork and sample approval are settled before quotation.
Dimensions & construction
Special depths, thickness, perforation, lid and handle requests are checked against feasibility, tooling and MOQ. Confirmed combinations are fixed in the quotation.
Private-label packaging
Labels, barcodes, private-label cartons, color boxes and pallets follow separate MOQs and final packing approval.
Quality control
Order-specific checks, not slogans.
Quality control at SEEKTAY follows the confirmed order basis—specification, approved sample, artwork and packing plan—for every shipment.
Material & construction
Material grade, selected thickness and construction are checked against the confirmed specification and the approved sample for the order.
Dimensions & fit
Outside dimensions, depth, rim and sidewall profile are verified against the order documents before production release.
Marking & packaging
Logo, capacity markings, labels, cartons and palletizing are checked against the approved artwork and packing plan.
Quantity & documents
Quantities, carton marks and shipment documents are reconciled with the confirmed order before dispatch.
